SN8F27E23XG

Product number:SN8F27E23XG

SN8F27E23XG



Share to

Product detail



Description

SN8F27E23 series 8-bit micro-controller is a new series production applied advanced semiconductor technology to implement flash ROM architecture. SN8F27E23 is RISC-like high performance and wide operating range (1.8V~5.5V @32mips). One clock per instruction cycle (1T) architecture will provide up to 32MIPS computation power. The device is designed with the excellent IC structure including the program memory up to 4K-word Flash ROM, data memory of 128-bytes RAM, 8-level stack buffers, multi-interrupt vector, five 8-bit timers, high performance 12+1 channel 12-bit ADC(one internal ADC channel for 2V/3V/4V measurement), one channel PWM output (PWM0), six channel PWM output (PWM10/11, 20/21, 30/31), 2-type serial interfaces and flexible operating modes. There are four oscillator configurations to select for generating system clock, including high speed crystal, ceramic resonator, external clock input or cost-saving RC. This device also includes an internal 32MHz RC oscillator for system clock. Under flash ROM platform, SN8F27E23 builds in in-system-programming (ISP) function extending to EEPROM emulation and Embedded ICE function. Powerful functionality, high reliability and low power consumption can apply to AC power application and battery level application easily.

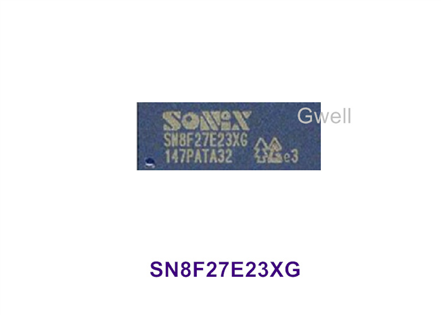

Product picture
