SN8F26E611LAG

Product number:SN8F26E611

SN8F26E611LAG



Share to

Product detail



SN8F26E61 series 8-bit micro-controller is a new series production applied advanced semiconductor technology to implement flash ROM architecture. SN8F26E61 is RISC-like high performance and wide operating range (1.8V~5.5V @16mips). One clock per instruction cycle (1T) architecture will provide up to 16MIPS computation power. The device is designed with the excellent IC structure including the program memory up to 2K-word Flash ROM, data memory of 128-bytes RAM, 8-level stack buffers, multi-interrupt vector, four 8-bit timers, one 16-bit timer, high performance 8-ch comparators, 3-set individual programmable PWMs, 2-type serial interfaces and flexible operating modes. There are three oscillator configurations to select for generating system clock, including Low Speed crystal, ceramic resonator or cost-saving RC. This device also includes an internal 16MHz RC oscillator for system clock. Under flash ROM platform, SN8F26E61 builds in in-system-programming (ISP) function extending to EEPROM emulation and Embedded ICE function. Powerful functionality, high reliability and low power consumption can apply to AC power application and battery level application easily.

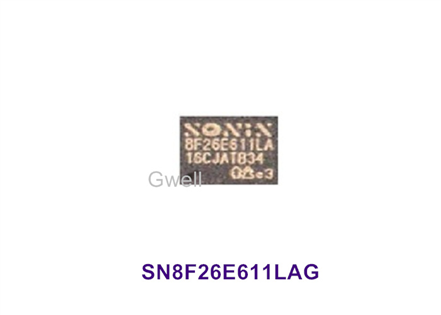

Product picture
