All products  / ▓ Sonix / MCUs  / 8-Bit Flash Type

SN8F22E88BFG

Product number:SN8F22E88BFG

SN8F22E88BFG



Share to

Product detail


SN8F22E80B series 8-bit micro-controller is a new series production applied advanced semiconductor technology to implement flash ROM architecture. SN8F22E80B is high performance and wide operating range (1.8V~5.5V @32mips). One clock per instruction cycle (1T) architecture will provide up to 32MIPS computation power. The device is designed with the excellent IC structure including the program memory up to 16K-word Flash ROM, data memory of 1K-bytes RAM, 8-level stack buffers, multi-interrupt vector, four 8-bit timers, one 16-bit timers, high performance 16 channel 12-bit ADC, six channel PWM output (PWM10/11, 20/21, 30/31), Full Speed USB 2.0. Under flash ROM platform, SN8F22E80B builds in in-system-programming (ISP) function extending to EEPROM emulation and Embedded ICE function. Powerful functionality, high reliability and low power consumption can apply to AC power application and battery level application easily.

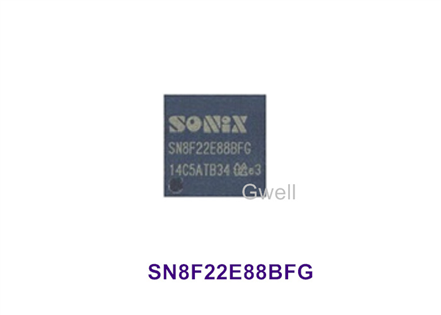

Product picture
