Nordic nRF51-DK

Product number:nRF51-DK

Bluetooth Low Energy Development Kit for the nRF51 Series



Share to

Product detail

The nRF51 DK is a low-cost, versatile single-board development kit for Bluetooth® low energy, ANT and 2.4GHz proprietary applications using the nRF51 Series SoC. This kit supports development for both nRF51822, nRF51824 and nRF51422 SoCs.

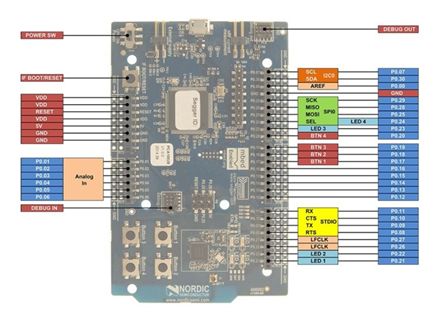

It facilitates development exploiting all features of the nRF51 Series SoCs. All GPIOs are available via edge connectors and headers, and 4 buttons and 4 LEDs simplifies input and out to and from the SoC.

It is Arduino Uno Revision 3 compatible, making it possible to mount 3rd-party shields with ease. It comes with a SEGGER J-Link debugger allowing programming and debugging both the on-board SoC and external SoCs through the debug out header. It also interfaces directly with the Power Profiler Kit.

It can be powered with USB, but also includes a CR2032 battery holder, enabling in-field testing of prototypes.


Product picture
