nRF2401L01P-PA

Product number:ST-TR24L01P-PA-V02

Module >> Place of Production: Taiwan



Share to

Product detail

ST-TR24L01P-PA1 is 2.4GHz transceiver PA module, which is developed by Nordic nRF24L01 & RFX2401C chipset, GFSK modulation supported, long range communication and lower power wireless application in the worldwide ISM Band 2.400~2.483GHz.

Dimension: 18.5x13.5 mm


Features:
● Worldwide 2.4GHZ ISM Band(2.400~2.483GHz)
● GFSK Modulation
● SPI Interface
● 250k,1M,2M air data rate
● Programmable output power
● 3V~3.6V supply voltage range
● Automatic packet handling
● Auto packet transaction handling
● Outline: TBC

Applications:
● Wireless PC peripherals
● Wireless data communication
● Alarm & security system
● VOIP headsets
● Wireless photo frame
● Surveillance
● RF remote for consumer products
● Home & Commercial automation
● Ultra low power sensor networks
● Active RFID
● Toys

Dimension

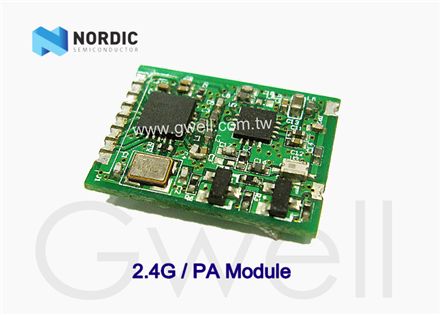

Product picture
