nRF2401L

產品編號:ST-TR24L01P-B

模組生產地: 台灣





售價 : $125(會員優惠價)
原價 : $125

規格

數量
−+

加入購物車
分享到

產品說明

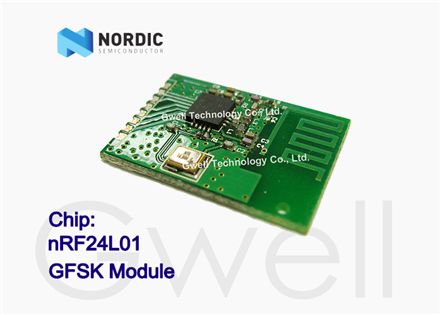

ST-TR24L01 is developed by Nordic nRF24L 01 solution, which is a GFSK module and designed for ultra-low power wireless application in the worldwide ISM Band 2.400~2.483GHz.

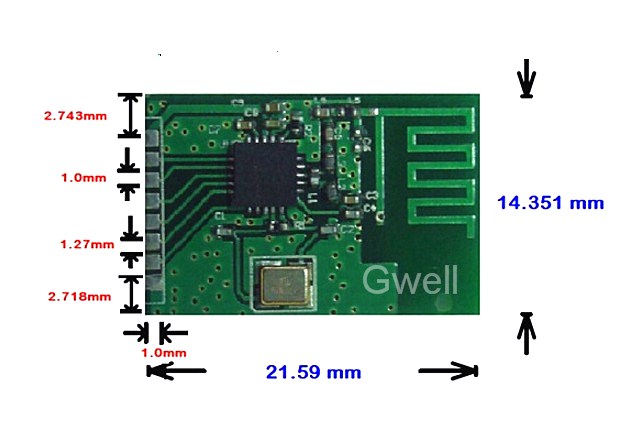

Dimension: 21.59x14.35 mm


Features:
● Worldwide 2.4GHZ ISM Band(2.400~2.483GHz)
● GFSK Modulation
● SPI Interface
● 250k,1M,2M air data rate
● Programmable output power : 0 ,-6 , -12 ,-18dBm
● 11.3mA TX @ 0dBm output power
● 13.1mA RX @1Mbps air data rate
● 900nA in power down mode
● 22uA in standby-1
● 1.9~3.6V supply voltage range
● Automatic packet handling
● Auto packet transaction handling

Applications:
● Wireless PC peripherals
● Mouse keyboard & Remote
● 3-in-1 desktop bundles
● VOIP headsets
● Game controllers
● RF remote for consumer products
● Home & Commercial automation
● Ultra low power sensor networks
● Active RFID
● Toys
