nRF2401L01P

產品編號:ST-TR24L01P-PA-V02

模組生產地: 台灣





售價 : $126(會員優惠價)
原價 : $126

規格

數量
−+

加入購物車
分享到

產品說明

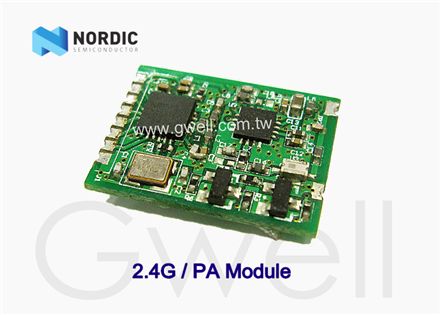

ST-TR24L01P-PA1 is 2.4GHz transceiver PA module, which is developed by Nordic nRF24L01 & RFX2401C chipset, GFSK modulation supported, long range communication and lower power wireless application in the worldwide ISM Band 2.400~2.483GHz.

Dimension: 18.5x13.5 mm


Features:
● Worldwide 2.4GHZ ISM Band(2.400~2.483GHz)
● GFSK Modulation
● SPI Interface
● 250k,1M,2M air data rate
● Programmable output power
● 3V~3.6V supply voltage range
● Automatic packet handling
● Auto packet transaction handling
● Outline: TBC

Applications:
● Wireless PC peripherals
● Wireless data communication
● Alarm & security system
● VOIP headsets
● Wireless photo frame
● Surveillance
● RF remote for consumer products
● Home & Commercial automation
● Ultra low power sensor networks
● Active RFID
● Toys

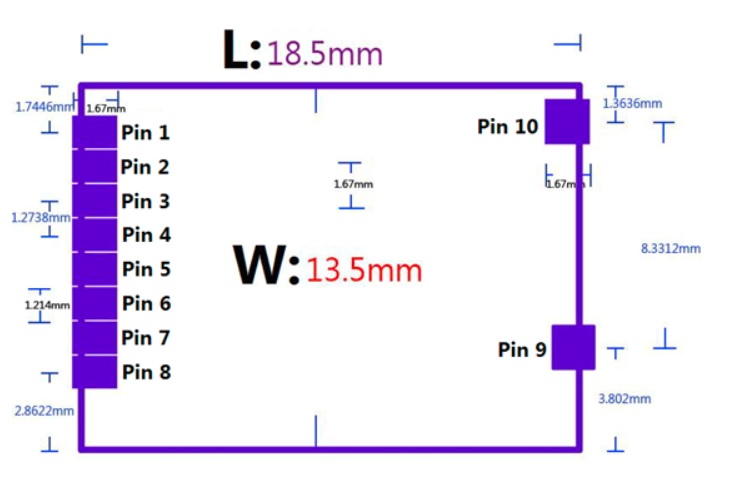

Dimension




產品展示圖
